The three main pc-1 Processor Platforms are as follows:

VIA pc1000 Platform : features the 800MHz VIA C3 processor with the VIA CLE266 digital media IGP chipset. Based on the VIA CoolStream Architecture, this processor comes delivers excellent performance per watt and has a maximum design power (TDP) of only 18 watts, using over 78% less power than competing processors targeted at emerging markets. More details on mainboard.

VIA pc1500 Platform : features the 1GHz VIA C3 processor with advanced performance features and the VIA PadlockTM Security Engine, and is accompanied by the VIA CLE266 digital media IGP chipset. Highly power efficient, the processor boast a TDP of just 15 watts and consumes over 82% less power than comparable processors. More details on mainboard.


VIA pc2500 Platform : features the latest technology within the 1.5GHz VIA C7-D processor, an ultra power efficient processor based on the 'Esther' core that includes support for the efficient VIA V4 bus and an extensive feature set within the StepAheadTM Technology Suite. The VIA C7-D processor is also the world's first carbon free processor. More details on mainboard.

All platforms are complemented by the VIA C-Series digital media chipsets that support the higher bandwidth and now more affordable DDR memory standard. The VIA C-Series boast the VIA UniChromeTM IGP (Integrated Graphics Processor) 2D/3D graphics engine, a host of digital video enhancing processes including hardware MPEG-2 decode acceleration, and 6-channel surround sound audio for a richer multimedia experience, as well as extensive connectivity and storage options.

VIA MM Motherboard


LATEST

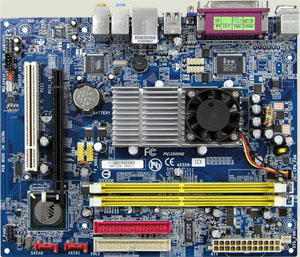

VIA MM3500



VIA MM3500 Mainboard Specifications:

Form Factor
  • Micro-ATX
  • 230mm x 180mm
  • Processor
  • VIA C7-D 1.5/1.8/2.0GHz
  • Chipset
  • North Bridge: VIA CN896
  • South Bridge: VT8237A
  • System Memory
  • 2 DDR2 DIMM slots
  • Up to 2GB memory size
  • VGA
  • VIA UniChrome Pro IGP
  • Onboard IDE/SATA
  • 2 PATA connectors (Up to ATA133)
  • 2 SATA connectors (Support SATA 150)
  • Onboard LAN
  • VIA VT6122 10/100/1000Mbps Ethernet
  • Onboard Audio
  • VIA VT 1708 (support 8 channels audio HD CODEC)
  • Onboard I/O Connectors
  • 2 USB 2.0 connectors (for 4 additional USB 2.0 ports)
  • 1 Front-panel audio connector (mic and line out)
  • 1 PCI-Express x16
  • 1 PCI Slot
  • 1 Floppy drive connector
  • 1 CD Audio-in connector
  • 1 SPDIF connector
  • 2 Serial Port Header
  • 2 Fan connectors: CPU/Sys FAN
  • 1 ATX Power 20-pin connector
  • 1 +12V 4pin Power Connector
  • 1 CNR Slot
  • 1 IR connector
  • Back Panel I/O
  • 4 USB 2.0 ports
  • 1 RJ-45 LAN port
  • 3 Audio jacks: line-out, line-in and mic-in
  • 1 Center/Subwoofer out
  • 1 Side Speaker Out
  • 1 PS2 mouse port
  • 1 PS2 keyboard port
  • 1 LPT (parallel) port
  • 1 COM (serial) port
  • 1 VGA port (D-SUB 15-pin)
  • 1 9-Pin S-Video Out (Support HDTV)
  • Operating System Support
  • Microsoft® Windows® Vista / XP / 2000 / CE
  • Linux
  • System Monitoring
  • CPU/System temperature reading & voltage monitoring
  • CPU/DDRII voltage monitoring
  • Operating Temperature
  • 0 ~ 35oC
  • Operating Humidity
  • 10% ~ 90% (relative humidity; non-condensing)
